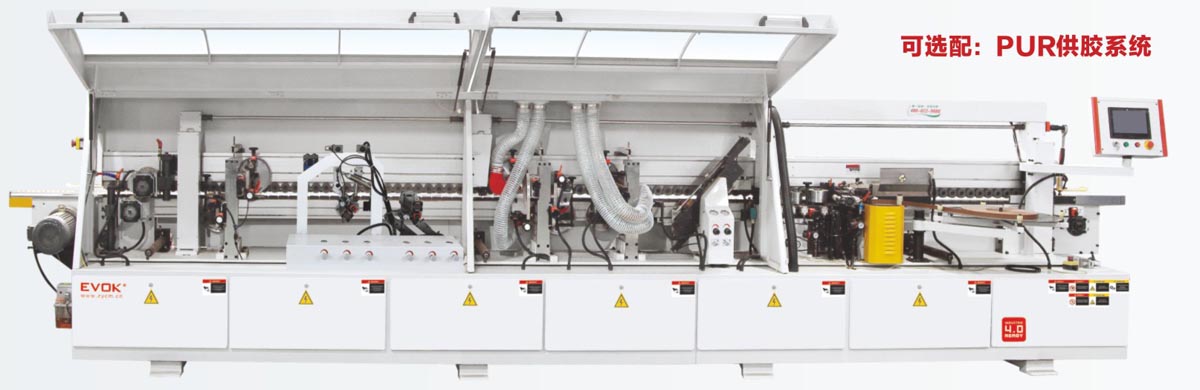

TC-60A 跟蹤仿形全自動封邊機
Features
1. Utilizing a stalker set to realize corner rounding ,it is a high-tech device.
2. Novel construction, stable performance, suitable for different bandings.
3. Automatically change 2 thicknesses of banding.
4. A best solution for effective and qualitative working.
5. The glue port can be replaced by an optional EVOK made clean-free PUR system.
6. High edge banding speed up to 25-30m/Min.

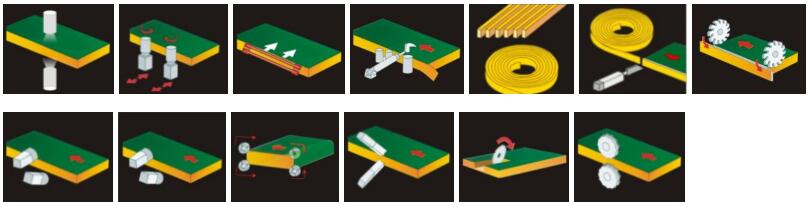

7. Including functions: Spray anti-sticks/Pre-milling/Pre-heating/Gluing/Edge feeding/Edge cutting/Ends trimming/Rough finish/Fine finishing/Corner rounding/Scraping/Scoring/ Polishing
Technical Specs
◎Power source: 380V/50Hz/3HP+N
◎Min. panel width: 60mm
◎Min. panel length:100mm
◎Panel thickness: 10-60mm
◎Banding belt thickness: 0.3-12mm
◎Banding belt width: 12-65mm
◎Stalker banding belt thickness: 1.2-3mm
◎Feeding speed: 10-30m/Min.
◎Air pressure:0.6-0.8Mpa
◎Total power:22KW
◎Machine size:7200x950x1750mm
◎Machine weight:2500kg
