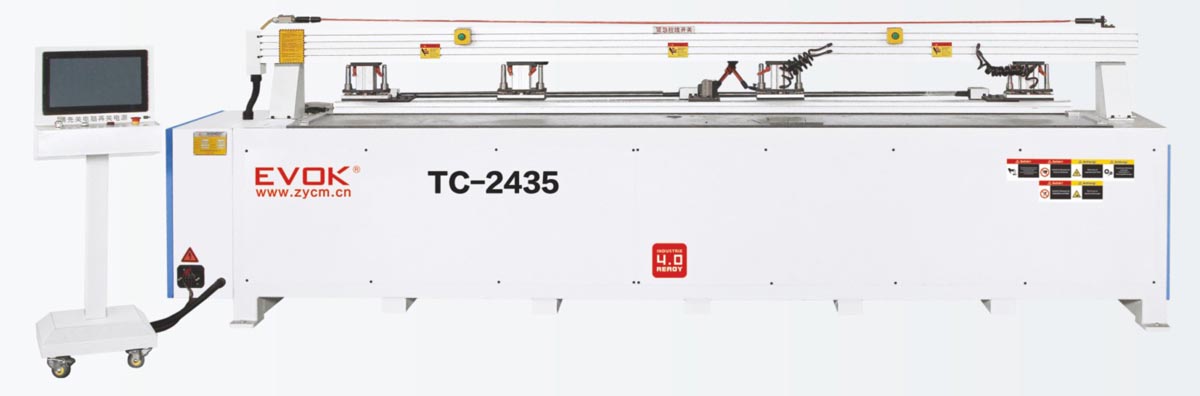

TC-2435 智能化柜門鉸鏈機
Features
1. Intelligent computer control.
2. Obtain drilling parameter by scanning barcode.
3. Efficiency and accuracy.
4. Suitable for cabinet doors.
Technical Specs
◎Power source:380V/50Hz/3HP+N
◎Air pressure:0.6-0.8Mpa
◎Max. drilling diameter:35mm
◎Max. drilling depth:50mm
◎Max. panel length:2400mm
◎Spindle number:3
◎Total power:2.6KW
◎Machine size:3300x710x1300mm
◎Machine weight:1000kg
